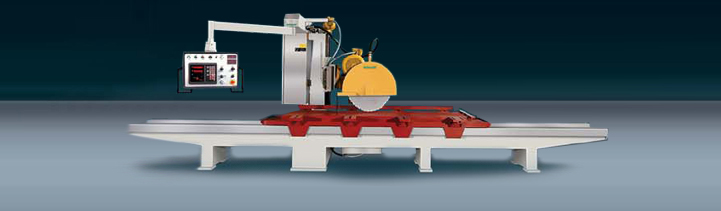

A.G.P. : Medium-sized carriage machine for cutting stone material
Very strong cast iron structure, mechanically worked with high quality and
precision processes.
The main feature is the remarkable table flowability obtained through
special gears, always in oil bath and perfectly protected by stainless steel
covers.
The spindle axis is assembled on oil bath bearings and operated by
electric motor through V-type belts.
Spindle traverse and vertical movements through a screw controlled
by reducer.
Possibility of manual 90° spindle slant to carry out slanted cuts or
undercuts.
Bench manual movement through handwheel and reducer/rack kinematic
motion.
Bench mounted on reinforced concrete pillars.
Disc maximum diameter 800 mm (optional 1000 mm)
Spindle power 15 kW (optional 22 kW)
Options
THERE IS ALWAYS ENOUGH ROOM FOR SOME
FURTHER DESIRES.
- Inverter for spindle speed regulation.
- Bench electrical feed.
- Bench support structure from carpentry.
- Reference square on the bench for piece alignment.
- Electronic equipment for profiled shapes with possibility of profiles drawing directly on the control panel screen.
Standard workings
01 Single cut
02 Slanted cut
03 Multiple cut
04 Profiling
